AUSLAND MDS-9001 Single Vehicle Diagnostic Scanner Professional Diagnostic Scan Tool

AUSLAND MDS-9001 Single Vehicle Diagnostic Scanner Professional Diagnostic Scan Tool

MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems.

• MDS-9001 Including OBD2 basic functions such as codes and live data.
• Also with advanced functions, such as actuation, adaptation and programming.
• Additionally, it support special function, such as oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.

OBDII Function

1. Read fault codes
2. Clear fault codes
3. Retrieve data stream
4. EVAP test
5. Vehicle information
6. I/M Readiness

Features for Ausland MDS-9001 Vehicle Diagnostic Scanner

1. Works on most systems
2. Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
3. On-board readiness monitoring- to read the results of on-board diagnostic monitoring tests for specific components systems
4. Requests and records live sensor data
5. Provides live data graphing, Merges graphs for easy and intuitive diagnosis
6. Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
7. Performs most adaptations, Does active tests on systems and components
8. Performs special functions, coding, security access
9. Retrieve ECU information
10. EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary procedures available
11. Fuel injection (all gasoline & 12 V diesel)
12. Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
13. Turn off the ECU warning light, diagnoses EPB/SBC functionality
14. View & graph live data for real time graphing/live data reading
15. Component for bi-directional tests such as cycling abs solenoids
16. Re-calibration of brake control module after changing the brake pads replacement
17. Sets inspection 1, 2 service interval
18. Sets (non) long life oil service
19. Sets inspection mileage
20. Deactivates and re-activates brake control system
21. Retracts calipers for brake pad replacement
22. Returns calipers to the original position
23. Initializes the wear indicator if new pads installed
24. Diagnoses EPB caliper functionality
25. Code troubleshooters for faster and easier diagnosis
26. Multilingual menu options and code definitions
27. Memory card for data backup and software update by internet
28. Large TFT color screen and menu-driven operation
29. Multi System Platform capable

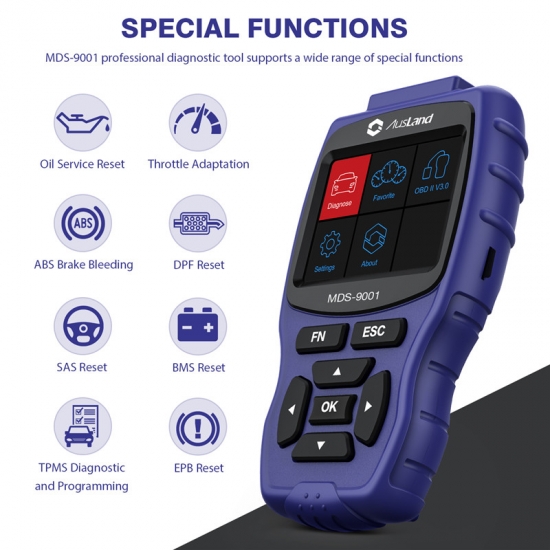

Special Functions for MDS-9001

1. A/C On With Ignition On Key
2. Adjust Transversal-Acceleration Sensor
3. Adjustment, Steering-Angle Sensor
4. Alignment Ews-Dme-Cas-Dde
5. Arm Acoustically Doors/Lids Closed
6. Arm Visually Doors/Lids Closed
7. Arming/Disarming
8. Auto Fan Control On With Ignition On Key
9. Automatic Driving Lights Control
10. Automatic Locking\Car
11. Bleed Routine
12. Bleeding Procedure
13. Bleeding, Dsc Hydraulics
14. Brake Fluid
15. Car Key Memory
16. Cas Reset
17. Cbs Correction Vehicle Data
18. Clear Adaptations
19. Co Adjustment
20. Compartment Sensor
21. Convenient Closing /Opening Rc
22. Coolant
23. Correction Set Temperature
24. Daytime Driving Lights
25. Delete Transport Mode
26. Diesel Filter
27. Disable/Enable Key
28. Disarm Acoustically
29. Disarm Visually
30. Display Coding Code
31. Display History Of Battery Replacement
32. Drain Fill The Refrigerant Circuit
33. Driver's Window\One Touch Close/Open
34. Dsc Unit Adjustment
35. Easy Entry Steering Wheel Longitudinal / Tilting
36. Elv Steering Lock Fault Counter Reset
37. Enable/Disable Key
38. Engine Oil
39. Entrance Aid, Tilt Direction
40. Exhaust Emission Inspection
41. Front Brake
42. Home Lights Duration
43. Idle Speed Adjustment
44. Initialize Power Windows
45. Injector Rate Matching
46. Key Memory Of Heat/Ac/Ventilation
47. Key Number
48. Lateral Acceleration Sensor Adjustment
49. Learn Sensor Values
50. Learning Valvetronic Limit Positions
51. Longitudinal Acceleration Sensor Adjustment
52. Micro Filter
53. Mirror Folding
54. Mix-Up Checks, Brake Lines
55. Passenger's Window\One Touch Close/Open
56. Rain/Light Sensor Initialization
57. Read Out Operating Data
58. Rear Brake
59. Rear Window Driver's Side\One Touch Close /Open
60. Rear Window Passenger's Side\One Touch Close /Open
61. Recirculated Air Memory
62. Register Battery Change
63. Register Battery Replacement
64. Relock 2 Minutes After Unlocking If Doors Unopened\Key
65. Renewal Of The Brake Caliper Or Brake Pads
66. Replacement Particular Filter
67. Reset Service Interval Indicator
68. Reset Starter Interlock
69. Run-In Protection For a/c Compressor
70. Seat/Memory Position
71. Selective Central Locking/Convenient Access\Car
72. Set Fan Power
73. Spark Plugs
74. Start Windows Initialization
75. Startup
76. Sunroof Initialization
77. Tilt Sensor
78. Unlock, On Removal Of Rc
79. Vehicle Check
80. Volume Level
81. Workshop Mode

MDS-9001 Specification：

Display: 3.5’’ TFT LCD

Operating temperature: 0 ～ +50℃

Storage temperature:  -20 ～ +70℃

Operating current: 150mA 12V(Typical)

Power consumption: 1.8W(Typical)

Packing dimension: 176*102*33mm(L×W×H)

Weight: 270g

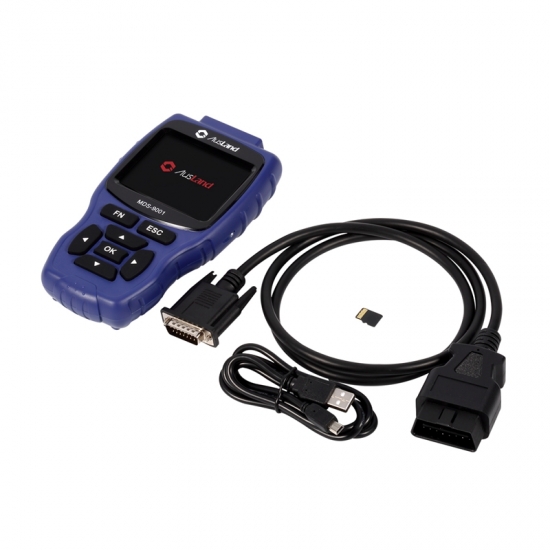

MDS-9001 Packing list:

Main unit             1pc

Main Cable            1pc

OBDII-16 Connector    1pc

USB Cable            1pc

User Manual           1pc
